Flex PCB Heater Performance Profiles
Choosing the right flex PCB heater starts with understanding how it performs under the physical and environmental stresses of your application.
Dimensional tolerances define how closely the heater fits into your design envelope. For example, aerospace and medical builds need heaters with tight tolerances and repeatable performance.
Bend radius is equally critical. A heater that’s too rigid may fail during installation or fatigue over time, while one engineered for flexibility can withstand repeated stress.
Then, there’s weight trade-off to consider: a lighter build may ease system constraints, but it must be balanced with mechanical strength and thermal performance.
Material stack-ups give you control over how the heater responds to chemical, mechanical, and thermal stress. Polyimide-based heaters resist harsh solvents and high temperatures, while alternative laminates provide added toughness. Composite builds allow you to fine-tune flexibility, durability, and heat transfer.
For specialty applications, heaters made from foil, laminate, and composite combinations can tackle unique challenges, including corrosion resistance, extreme temperature stability, and optimized weight.
When to Specify a Traditional Flexible Polyimide Heater

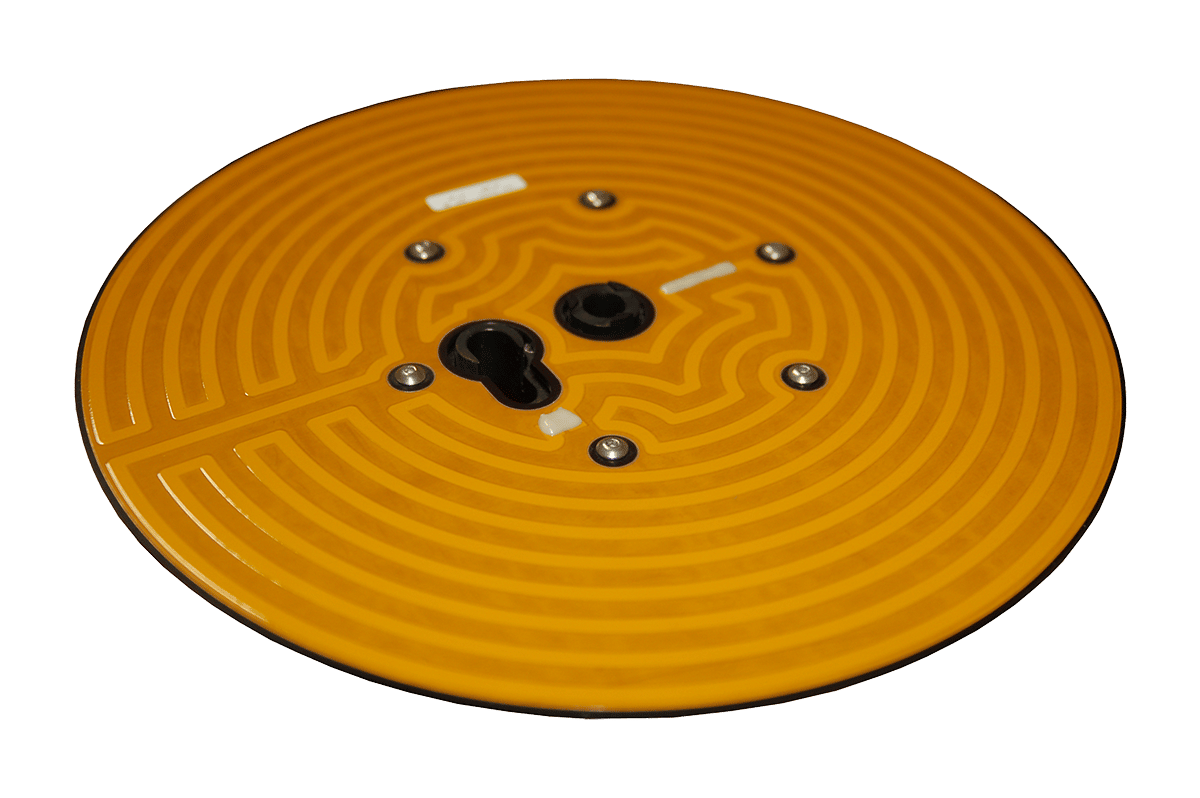

When your design calls for maximum flexibility, tight thermal control, and minimal weight, a traditional polyimide flex PCB heater is the right solution. These heaters are built ranging from 0.0045–0.010 inches thick, with the ability to curve around radii as small as 0.25 inches.
Unlike silicone rubber, polyimide construction leaves no oil residue, which is critical in solvent-heavy processes.
You’ll typically specify a polyimide heater when the application demands high performance in a compact package. Common use cases include:
- Precision instrumentation requiring stable, repeatable heating cycles
- Lightweight aerospace assemblies where every gram matters
- Late-stage integration into compact designs without compromising function
When to Specify a High-Temperature Heater

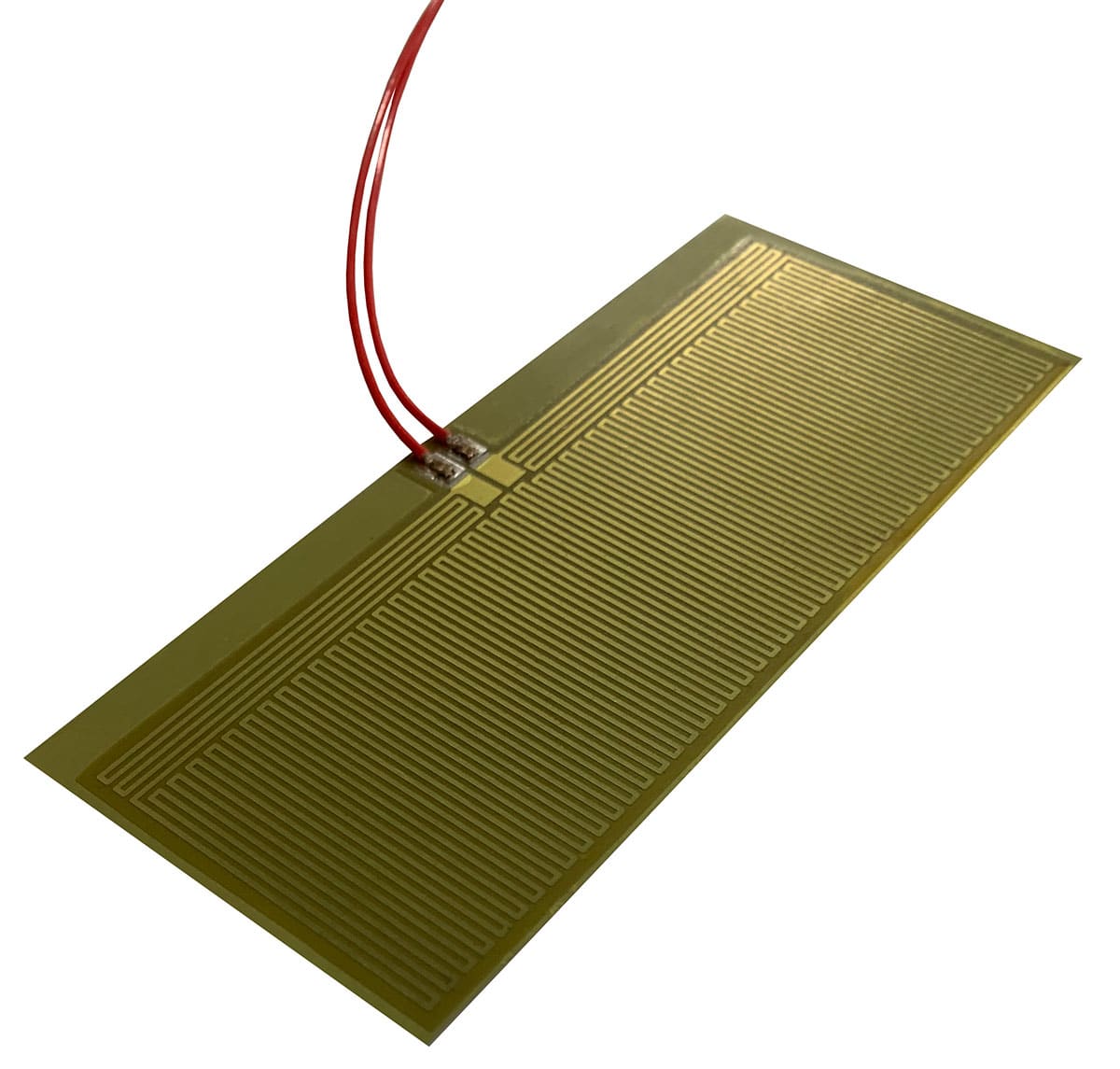

When your design must operate well above standard ranges, choose a high-temperature polyimide heater that is adhesive-free, maintains stable performance up to 572°F (300°C), and can be manufactured in continuous lengths over six feet.
These builds are the right fit for applications that require both precision and durability under punishing conditions, including:
- Downhole drilling equipment exposed to constant high heat and pressure
- Semiconductor processing where high watt densities are standard
- Medical diagnostic analyzers that depend on stable, repeatable heating cycles
- Defense electronics operating in rugged, high-temperature environments
When to Specify a Silicone Rubber Heater

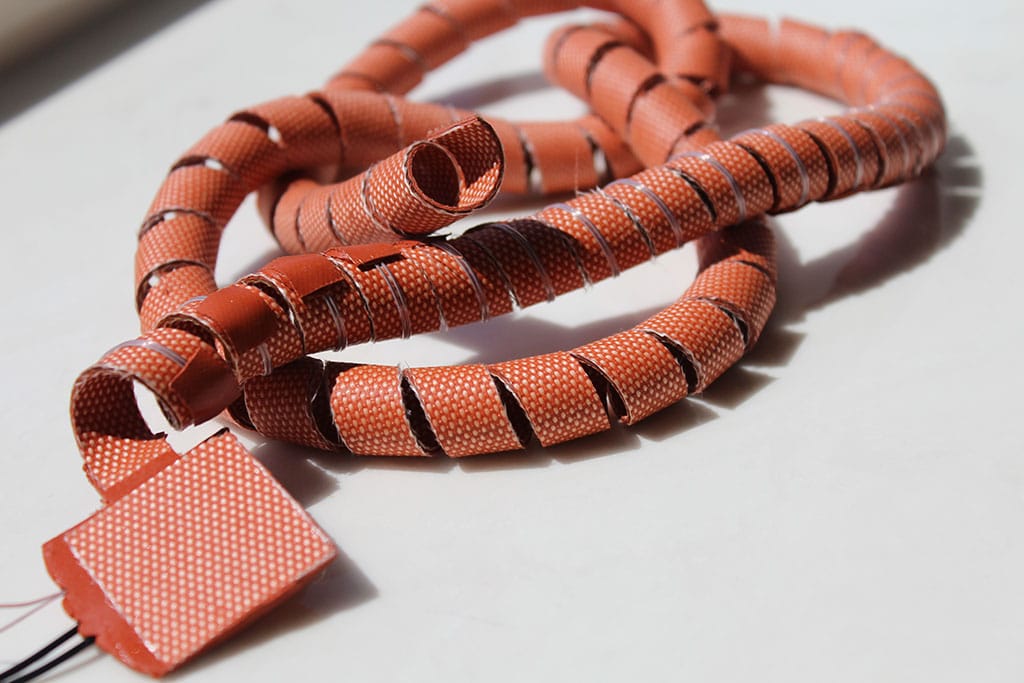

When durability and cost efficiency outweigh the need for extreme flexibility, a silicone rubber flex PCB heater is often the best fit. These heaters deliver reliable performance with thermal ratings up to 450 °F (232 °C) and are available in thicknesses ranging from 0.015″ to 0.060″.
The added thickness gives silicone rubber heaters natural mechanical protection, making them well-suited for environments where impact, abrasion, or moisture are concerns.
The trade-off is flexibility and weight. With a bend radius of about 1.5″, silicone rubber is not as bendable as polyimide. It’s also heavier, which may matter in aerospace or other weight-sensitive applications.
Use silicone rubber when your project demands ruggedness and environmental durability over minimal size or maximum bendability. Ideal applications include:
- Equipment exposed to weather
- Industrial systems requiring long service life
- Heating zones that need built-in protection
Termination Options for Harsh and High-Reliability Environments
In harsh or high-reliability environments, choosing the right connection method is critical. All Flex Solutions offers multiple options for heater assembly, each designed to balance mechanical strength, footprint, and ease of integration:
Wires –
Wires provide flexibility in routing and strain relief in dynamic applications. Select from customizable gauges and insulation types to match mechanical needs or EMI considerations.
ZIF Connectors –
Best for assemblies requiring frequent connect/disconnect cycles without wear. These low-insertion-force connectors protect delicate heater leads and simplify service or replacement.
Surface Mount Connectors –
When board density is high and space is at a premium, surface mount connectors provide a minimal footprint while maintaining reliable electrical connections.
Through-Hole Connectors –
For ruggedized platforms subject to shock or vibration, through-hole terminations deliver mechanical security and long-term reliability.
Industry-Specific Integration Insights
Knowing how your environment shapes flex PCB heater design will help you specify the right build from the start.
Aerospace –
Weight reduction is always at the forefront. Thin polyimide heaters minimize mass without sacrificing performance. Outgassing requirements demand material sets qualified for vacuum or low-pressure conditions, and heaters can be designed to meet MIL-STD compliance
Medical –
Devices must survive repeated sterilization cycles without degradation. Biocompatible materials eliminate patient risk, and heaters can be assembled in cleanroom environments to meet regulatory standards. Polyimide builds with chemical resistance are often the best fit.
Semiconductor –
Processes require uniform thermal distribution across sensitive substrates. Heater designs minimize particulate generation, while ESD considerations protect high-value wafers and electronics. High-watt-density polyimide heaters are common in these applications.
Industrial & Energy –
Large-format heaters serve heavy-duty applications such as oil and gas, chemical processing, and composite curing. Silicone rubber or high-temperature polyimide builds withstand mechanical stress and extended thermal zones.
